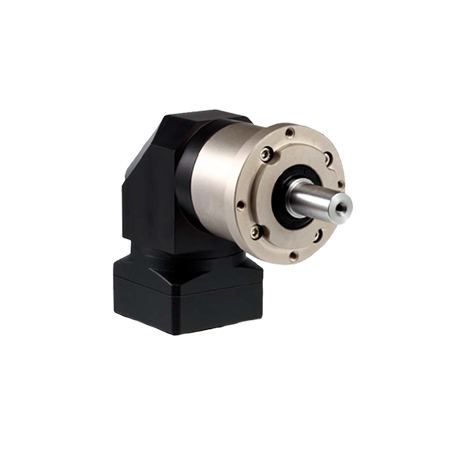

MHRA Series

    Liên hệ: 0393.665.382

    THÔNG TIN SẢN PHẨM

    Features (Product Availability)

    HAR
    Stage Gear ratio 50 70 90 120 155 205 235
    1A 3~10 ◯ ◯ ◯ ◯ ◯ ◯ ◯
    14,20 ☏ ◯ ◯ ◯ ◯ ◯ ◯
    2B 15,20 ☏ ☏ ☏ ☏ ☏ ☏ ☏
    25~100 ☏ ◯ ◯ ◯ ◯ ◯ ◯
    120~200 ☏ ☏ ◯ ◯ ◯ ◯ ◯
    2A 15,20 ◯ ☏ ☏ ☏ ☏ ☏ ☏
    25~100 ◯ ◯ ◯ ◯ ◯ ◯ ◯
    120~200 ☏ ◯ ◯ ◯ ◯ ◯ ◯
    1M/2M 3~200 ☏ ☏ ☏ ☏ ☏ ☏ ☏

    ○ : Standard, △: Custom made, ☏ : Contact sales person.

    Specification

    Division Stage Gear ratio 050 070 090 120 155 205 235
    Nominal Output Torque (Nm) 1 3 20 57 148 272 484 897 1,585
    4 18 51 143 295 549 1,060 1,752
    5 19 54 160 332 634 1,195 2,005
    6 18 50 151 311 592 1,109 1,906
    7 17 48 145 305 562 1,104 1,835
    8 16 44 132 279 527 1,035 1,712
    9 14 42 123 254 483 947 1,597
    10 14 42 121 262 500 980 1,640
    14 – 44 145 305 562 1,104 1,835
    15 14 – – – – – –
    20 14 22 71 147 275 980 1,640
    2 25 19 54 160 332 634 1,195 2,005
    30 18 50 151 311 592 1,109 1,906
    35 17 48 145 305 562 1,104 1,835
    40 16 44 132 279 527 1,035 1,712
    45 14 42 123 254 483 947 1,597
    50 19 54 160 332 634 1,195 2,005
    60 18 50 151 311 592 1,109 1,906
    70 17 48 145 305 562 1,104 1,835
    80 16 44 132 279 527 1,035 1,712
    90 14 42 123 254 483 947 1,597
    100 14 42 121 262 500 980 1,640
    120 – – 151 311 592 1,109 1,906
    140 – – 145 305 562 1,104 1,835
    160 – – 132 279 527 1,035 1,712
    180 – – 123 254 483 947 1,597
    200 – – 121 262 500 980 1,640
    Emergency Stop Torque (Nm) 1,2 3~200 3 times nominal output torque
    Nominal Input Speed (rpm) 1,2 3~200 5,000 5,000 4,000 4,000 3,000 3,000 2,000
    Max. Input Speed (rpm) 1,2 3~200 10,000 10,000 8,000 8,000 6,000 6,000 4,000
    Torsional Rigidity (Nm/Arcmin) 1,2 3~200 3 7 14 26 55 143 233
    Max. Radial Load (N) 1,2 3~200 750 1,280 3,200 6,800 9,300 15,100 50,000
    Max. Axial Load (N) 1,2 3~200 390 690 1,600 3,400 4,500 7,500 28,000
    Backlash
    (Arcmin)    		 S 1 3~20 ≤ 8 ≤ 8 ≤ 8 ≤ 8 ≤ 8 ≤ 8 ≤ 8
    2 25~200 ≤ 11 ≤ 11 ≤ 11 ≤ 11 ≤ 11 ≤ 11 ≤ 11
    P 1 3~20 ≤ 6 ≤ 6 ≤ 6 ≤ 6 ≤ 6 ≤ 6 ≤ 6
    2 25~200 ≤ 9 ≤ 9 ≤ 9 ≤ 9 ≤ 9 ≤ 9 ≤ 9
    A 1 3~20 ★ ≤ 4 ≤ 4 ≤ 4 ≤ 4 ≤ 4 ≤ 4
    2 25~200 ★ ≤ 7 ≤ 7 ≤ 7 ≤ 7 ≤ 7 ≤ 7
    Service Life (Hrs) 1,2 3~200 20,000 (10,000 under continuous operation)
    Efficiency (%) 1 3~20 ≥ 95
    2 25~100 ≥ 92
    Weight (kg) 1A 3~20 ≤ 0.9 ≤ 1.5 ≤ 6.0 ≤ 12.0 ≤ 24.0 ≤ 51.0 ≤ 84.0
    2A 25~200 ≤ 1.2 ≤ 2.0 ≤ 7.5 ≤ 13.5 ≤ 26.0 ≤ 54.0 ≤ 90.5
    2B 25~200 – ≤ 1.9 ≤ 7.3 ≤ 12.8 ≤ 25.0 ≤ 53.0 ≤ 97.0
    Operating Temp (℃) 1,2 3~200 -10 ~ 90
    Lubrication 1,2 3~200 Grease (VIGO Grease RE #0)
    Degree of Gearbox Protection 1,2 3~200 IP65
    Noise (dB) 1,2 3~200 ≤ 58 ≤ 60 ≤ 63 ≤ 66 ≤ 69 ≤ 72 ≤ 74
    Inertia (㎏㎠) 1A 3~10 0.09 0.36 2.27 6.88 23.50 69.2 134.7
    14, 20 – 0.08 1.89 6.23 21.75 66.3 120.5
    2B 15, 20 – – – – – – –
    25~100 – 0.09 0.36 2.27 6.88 23.5 69.2
    120~200 – – 0.32 1.89 6.23 21.8 66.3
    2A 15, 20 0.09 – – – – – –
    25~100 0.09 0.36 2.27 6.88 23.50 69.2 134.7
    120~200 – – 1.89 6.23 21.75 66.3 120.5
