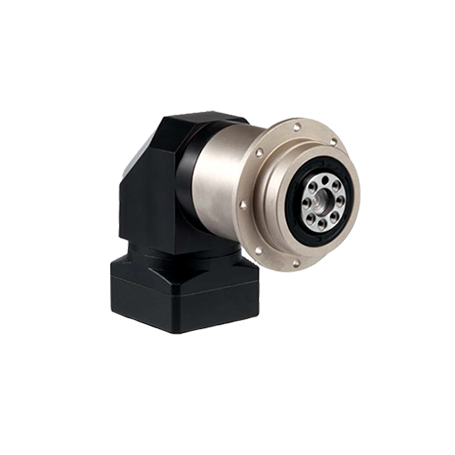

MHDA Series

    Liên hệ: 0393.665.382

    THÔNG TIN SẢN PHẨM

    Features (Product Availability)

    HAD
    Stage Gear ratio 47 64 90 110 140 200
    1A 3~10 ◯ ◯ ◯ ◯ ◯ ◯
    14,20 ☏ ◯ ◯ ◯ ◯ ◯
    2B 15,20 ☏ ☏ ☏ ☏ ☏ ☏
    25~100 ☏ ◯ ◯ ◯ ◯ ◯
    120~200 ☏ ☏ ◯ ◯ ◯ ◯
    2A 15,20 ◯ ☏ ☏ ☏ ☏ ☏
    25~100 ◯ ◯ ◯ ◯ ◯ ◯
    120~200 ☏ ◯ ◯ ◯ ◯ ◯
    1M/2M 3~200 ☏ ☏ ☏ ☏ ☏ ☏

    ○ : Standard, △: Custom made, ☏ : Contact sales person.

    Specification

    Division Stage Gear ratio 047 064 090 110 140 200
    Nominal Output Torque (Nm) 1 4 21 54 145 303 605 1,150
    5 21 55 158 332 634 1,194.5
    7 19 49 141 305 562 1,104
    10 15 42 118 262 500 980
    14 – 45 141 305 562 1,104
    20 21 42 118 262 500 980
    2 25 21 55 158 332 634 1,195
    35 19 49 141 305 562 1,104
    40 21 54 145 303 605 1,150
    50 21 55 158 332 634 1,195
    70 19 49 141 305 562 1,104
    100 15 42 118 262 500 980
    140 – – 141 305 562 1,104
    200 – – 118 262 500 980
    Emergency Stop Torque (Nm) 1,2 3~200 3 times nominal output torque
    Nominal Input Speed (rpm) 1,2 3~200 5,000 5,000 4,000 4,000 3,000 3,000
    Max. Input Speed (rpm) 1,2 3~200 10,000 10,000 8,000 8,000 6,000 6,000
    Torsional Rigidity (Nm/Arcmin) 1,2 3~200 7 14 31 84 153 445
    Max. Axial Load (N) 1,2 3~200 1,005 1,155 3,540 4,675 8,813 17,130
    Max. Bending moment (Nm) 1,2 3~100 45 135 242 445 1,300 3,050
    Backlash
    (Arcmin)    		 S 1 3~20 ≤ 8 ≤ 8 ≤ 8 ≤ 8 ≤ 8 ≤ 8
    2 25~200 ≤ 11 ≤ 11 ≤ 11 ≤ 11 ≤ 11 ≤ 11
    P 1 3~20 ≤ 6 ≤ 6 ≤ 6 ≤ 6 ≤ 6 ≤ 6
    2 25~200 ≤ 9 ≤ 9 ≤ 9 ≤ 9 ≤ 9 ≤ 9
    A 1 3~20 ★ ≤ 4 ≤ 4 ≤ 4 ≤ 4 ≤ 4
    2 25~200 ★ ≤ 7 ≤ 7 ≤ 7 ≤ 7 ≤ 7
    Service Life (Hrs) 1,2 3~200 20,000 (10,000 under continuous operation)
    Efficiency (%) 1 3~20 ≥ 94
    2 25~100 ≥ 91
    Weight (kg) 1A 3~20 ≤ 1.2 ≤ 2.3 ≤ 6.0 ≤ 10.8 ≤ 22.0 ≤ 52.0
    2A 25~200 ≤ 1.4 ≤ 2.6 ≤ 6.5 ≤ 12.0 ≤ 25.0 ≤ 56.5
    2B 25~200 – ≤ 2.0 ≤ 5.0 ≤ 10.0 ≤ 20.5 ≤ 46.0
    Operating Temp (℃) 1,2 3~200 -10 ~ 90
    Lubrication 1,2 3~200 Grease (VIGO Grease RE #0)
    Degree of Gearbox Protection 1,2 3~200 IP65
    Noise (dB) 1,2 3~200 ≤ 58 ≤ 60 ≤ 63 ≤ 66 ≤ 69 ≤ 72
    Inertia (㎏㎠) 1A 3~10 0.18 0.42 2.69 7.15 23.40 69.50
    14,20 – 0.42 2.69 7.15 21.80 66.70
    2B 15,20 – – – – – –
    25~100 – 0.18 0.42 2.69 7.15 23.40
    120~200 – – 0.42 2.69 7.15 21.80
    2A 15,20 0.18 – – – – –
    25~100 0.18 0.42 2.69 7.15 23.40 69.50
    120~200 – – 2.69 7.15 21.80 66.70
