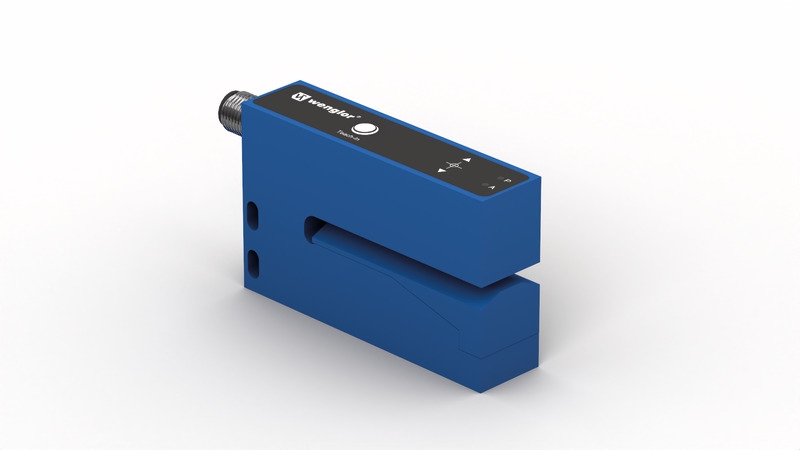

U1HJ001- Wenglor
| Ultrasonic Data | |
|---|---|
| Fork Width | 3 mm |
| Smallest Detectable Gap | 2 mm |
| Ultrasonic Frequency | 300 kHz |
| Electrical Data | |
|---|---|
| Supply Voltage | 12 … 30 V DC |
| Current Consumption (Ub = 24 V) | < 45 mA |
| Switching Frequency | 400 Hz |
| Response Time | 1.25 ms |
| Temperature Range | 0 … 50 °C |
| Switching Output Voltage Drop | < 1.5 V |
| Switching Output/Switching Current | 250 mA |
| Short Circuit Protection | yes |
| Reverse Polarity Protection | yes |
| Protection Class | III |
