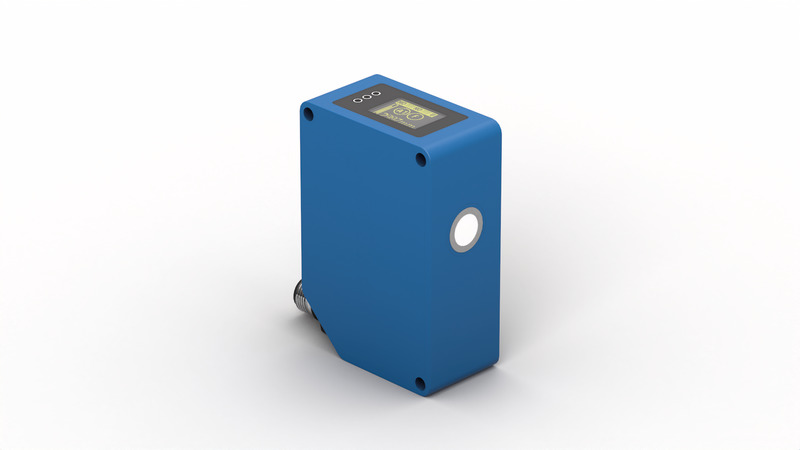

UMS123U035 – Wenglor
| Ultrasonic Data | |
|---|---|
| Working Range | 100 … 1,200 mm |
| Measuring Range | 1,100 mm |
| Reproducibility maximum | 1 mm |
| Linearity Deviation | 4 mm |
| Resolution | 0.2 mm |
| Ultrasonic Frequency | 225 kHz |
| Opening Angle | < 12 ° |
| Service Life (T = +25 °C) | 100,000 h |
| Switching Hysteresis | 5 mm |
| Electrical Data | |
|---|---|
| Supply Voltage | 18 … 30 V DC |
| Current Consumption (Ub = 24 V) | < 30 mA |
| Switching Frequency | 7 Hz |
| Response Time | < 72 ms |
| Temperature Range | -30 … 60 °C |
| Number of Switching Outputs | 2 |
| Switching Output Voltage Drop | < 2.5 V |
| PNP Switching Output/Switching Current | 100 mA |
| Analog Output | 4…20 mA |
| Synchronous Mode | up to 40 sensors |
| Multiplex Mode | up to 16 sensors |
- Digital and analog output
- Synchronous and multiplex mode
- Temperature drift eliminable
- Menu-driven settings
