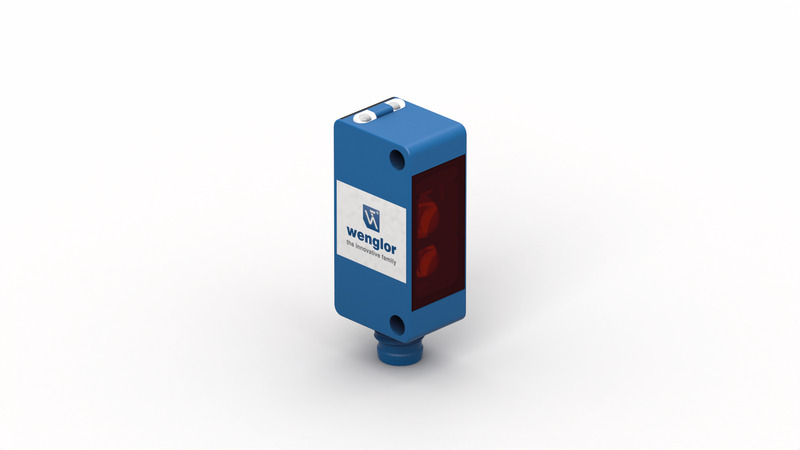

    P1KT004 – Wenglor

    Optical Data
    Range 100 mm
    Switching Hysteresis  < 10 %
    Light Source Red Light (Line)
    Service Life (T = +25 °C) 100,000 h
    Max. Ambient Light 10,000 Lux
    Light Spot Diameter see Table 1
    Electrical Data
    Supply Voltage 10 … 30 V DC
    Supply Voltage with IO-Link 18 … 30 V DC
    Current Consumption (Ub = 24 V) < 20 mA
    Switching Frequency 500 Hz
    Switching frequency (speed mode) 750 Hz
    Response Time 1 ms
    Response time (speed mode) 0.67 ms
    Temperature Drift < 5 %
    Temperature Range -40 … 60 °C
    Switching Output Voltage Drop < 2 V
    Switching Output/Switching Current 100 mA
    Residual Current Switching Output < 50 µA
