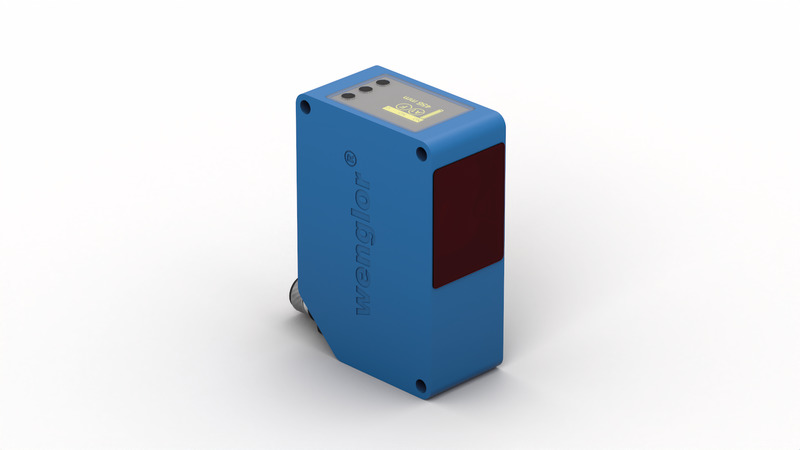

    OY1TA603P0003- wenglor

    Optical Data
    Working Range 0.2 … 6.2 m
    Measuring Range 6 m
    Resolution 1 … 12 mm
    Linearity 0.5 %
    Linearity Deviation 30 mm
    Switching Hysteresis 3 … 20 mm
    Light Source Laser (red)
    Wavelength 660 nm
    Service Life (T = +25 °C) 100,000 h
    Laser Class (EN 60825-1) 1
    Max. Ambient Light 10,000 Lux
    Beam Divergence < 2 mrad
    Light Spot Diameter see Table 1
    Electrical Data
    Supply Voltage 18 … 30 V DC
    Current Consumption (Ub = 24 V) < 100 mA
    Switching Frequency 50 Hz
    Measuring Rate 1 … 100 /s
    Response Time 10 … 200 ms
    On-/Off-Delay 0 … 10,000 ms
    Temperature Drift (-10 °C < Tu < 50 °C) < 0.2 mm/K
    Temperature Drift (Tu < -10 °C, Tu > 50 °C) < 0.4 mm/K
    Temperature Range -25 … 60 °C
    Number of Switching Outputs 2
    Switching Output Voltage Drop < 2.5 V
    Switching Output/Switching Current 200 mA
    Analog Output 0…10 V
