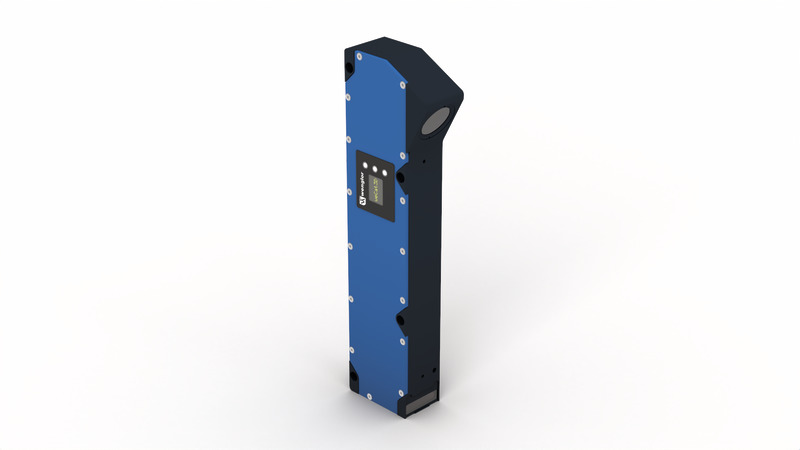

MLWL273 -Wenglor
| ptical Data | |
|---|---|
| Working range Z | 300 … 1,000 mm |
| Measuring range Z | 700 mm |
| Measuring range X | 280 … 830 mm |
| Linearity Deviation | 175 µm |
| Resolution Z | 27 … 162 µm |
| Resolution X | 181 … 446 µm |
| Light Source | Laser (blue) |
| Wavelength | 450 nm |
| Laser Class (EN 60825-1) | 3B |
| Environmental conditions | |
|---|---|
| Ambient temperature | 0 … 45 °C |
| Storage temperature | -20 … 70 °C |
| Max. Ambient Light | 5,000 Lux |
| EMC | DIN EN 61000-6-2; 61000-6-4 |
| Electrical Data | |
|---|---|
| Supply Voltage | 18 … 30 V DC |
| Current Consumption (Ub = 24 V) | 1,000 mA |
| Measuring Rate | 175 … 6,000 /s |
| Subsampling | 350 … 6,000 /s |
| Inputs/Outputs | 4 |
| Switching Output Voltage Drop | < 1.5 V |
| Switching Output/Switching Current | 100 mA |
