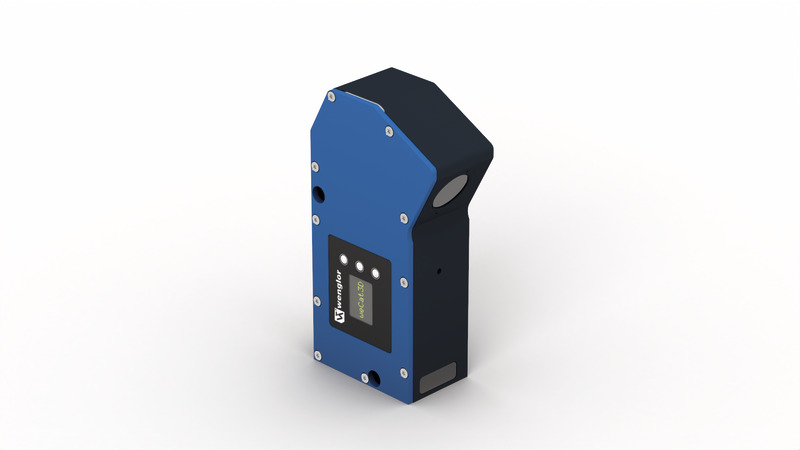

MLWL221-Wenglor
| Optical Data | |
|---|---|
| Working range Z | 120 … 300 mm |
| Measuring range Z | 180 mm |
| Measuring range X | 65 … 145 mm |
| Linearity Deviation | 45 µm |
| Resolution Z | 5.2 … 26 µm |
| Resolution X | 36 … 81 µm |
| Light Source | Laser (red) |
| Wavelength | 660 nm |
| Laser Class (EN 60825-1) | 2M |
| Environmental conditions | |
|---|---|
| Ambient temperature | 0 … 45 °C |
| Storage temperature | -20 … 70 °C |
| Max. Ambient Light | 5,000 Lux |
| EMC | DIN EN 61000-6-2; 61000-6-4 |
| Electrical Data | |
|---|---|
| Supply Voltage | 18 … 30 V DC |
| Current Consumption (Ub = 24 V) | 300 mA |
| Measuring Rate | 175 … 6,000 /s |
| Subsampling | 350 … 6,000 /s |
| Inputs/Outputs | 4 |
| Switching Output Voltage Drop | < 1.5 V |
| Switching Output/Switching Current | 100 mA |
