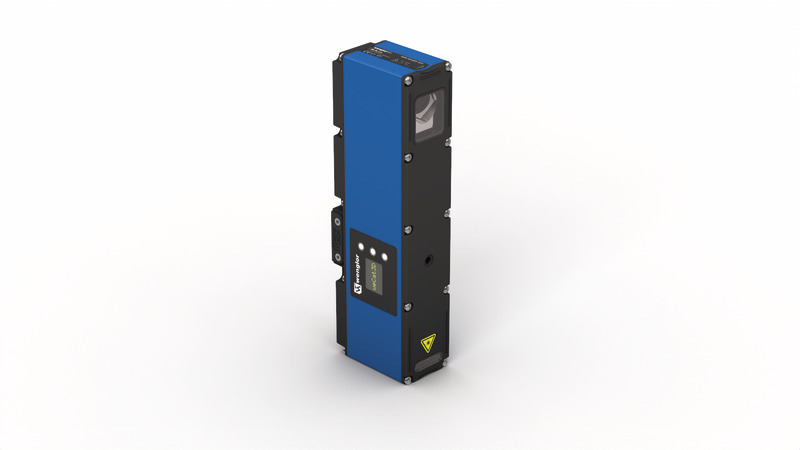

MLSL225-Wenglor
| Optical Data | |
|---|---|
| Working range Z | 280 … 1,280 mm |
| Measuring range Z | 1,000 mm |
| Measuring range X | 200 … 850 mm |
| Linearity Deviation | 500 µm |
| Resolution Z | 40 … 570 µm |
| Resolution X | 190 … 760 µm |
| Light Source | Laser (red) |
| Wavelength | 660 nm |
| Laser Class (EN 60825-1) | 2M |
| Environmental conditions | |
|---|---|
| Ambient temperature | 0 … 45 °C |
| Storage temperature | -20 … 70 °C |
| Max. Ambient Light | 5,000 Lux |
| EMC | DIN EN 61000-6-2; 61000-6-4 |
| Electrical Data | |
|---|---|
| Supply Voltage | 18 … 30 V DC |
| Current Consumption (Ub = 24 V) | 300 mA |
| Measuring Rate | 200 … 4,000 /s |
| Subsampling | 800 … 4,000 /s |
| Inputs/Outputs | 4 |
| Switching Output Voltage Drop | < 1.5 V |
| Switching Output/Switching Current | 100 mA |
