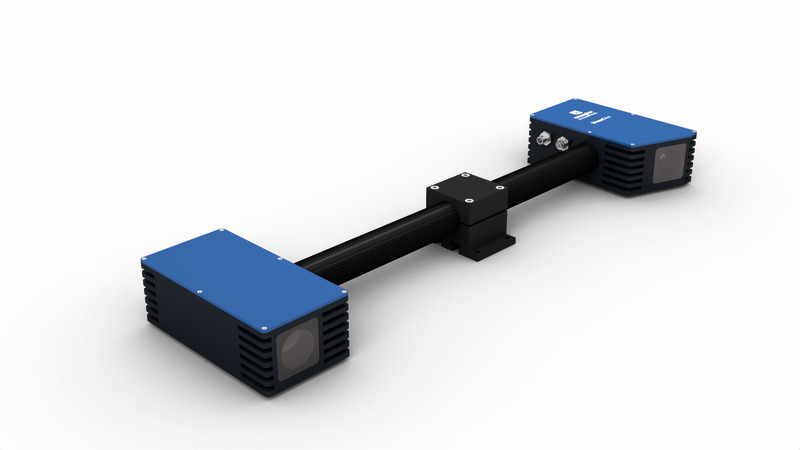

MLBS102-Wenglor
| Optical Data | |
|---|---|
| Working range Z | 1,550 … 2,050 mm |
| Measuring range Z | 500 mm |
| Measuring range X | 750 mm |
| Measuring range Y | 560 mm |
| Resolution Z | 50 µm |
| Resolution X/Y | 406 µm |
| Camera Resolution | 2,448 × 2,048 Pixel |
| Light Source | LED (blue) |
| Wavelength | 460 nm |
| Service Life (T = +25 °C) | 20,000 h |
| Risk Group (EN 62471) | 2 |
| Environmental conditions | |
|---|---|
| Ambient temperature | 0 … 35 °C |
| Storage temperature | -5 … 70 °C |
| Max. Ambient Light | 5,000 Lux |
| EMC | DIN EN 61000-6-2; 61000-6-4 |
| Electrical Data | |
|---|---|
| Supply Voltage | 18 … 30 V DC |
| Max. Current Consumption (Ub = 24 V) | 5 A |
| Recording duration | 0.35 … 2.15 s |
| Short Circuit Protection | yes |
| Reverse Polarity Protection | yes |
| Interface | Ethernet TCP/IP |
| Baud Rate | 100 Mbit/s |
| Baud Rate (10 GbE) | 10 Gbit/s |
