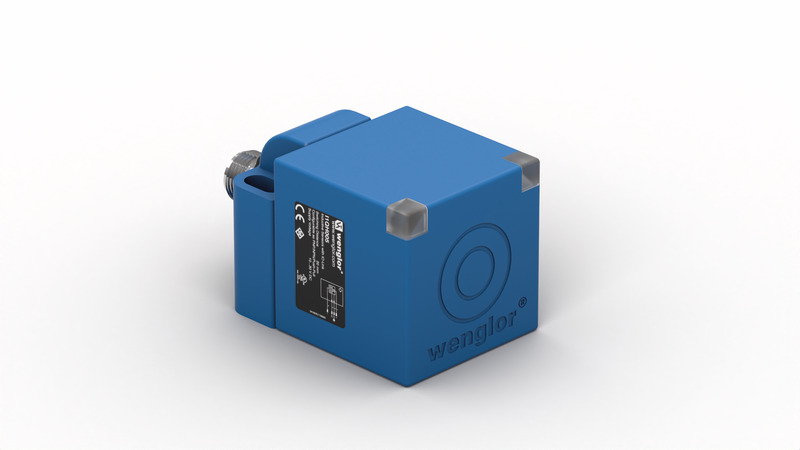

I1QH005-Wenglor
| Inductive Data | |
|---|---|
| Switching Distance | 20 mm |
| Standard Target | 60 × 60 mm |
| Correction Factors Stainless Steel V2A/CuZn/Al | 0,83/0,32/0,31 |
| Mounting | flush |
| Mounting A/B/C/D in mm | 0/40/60/0 |
| Mounting B1 in mm | 6…35 |
| Switching Hysteresis | < 10 % |
| Electrical Data | |
|---|---|
| Supply Voltage | 10 … 30 V DC |
| Supply Voltage with IO-Link | 18 … 30 V DC |
| Current Consumption (Ub = 24 V) | < 15 mA |
| Switching Frequency | 700 Hz |
| Temperature Drift | < 10 % |
| Temperature Range | -40 … 80 °C |
| Switching Output Voltage Drop | < 1 V |
| Switching Output/Switching Current | 150 mA |
| Residual Current Switching Output | < 100 µA |
