FIS-0004-0102-Wenglor Optical Data Barcode Density Low density Read Range 51 … 152 mm Resolution 640 × 480 Pixel Light Source Red Light Wavelength 617 nm Service Life (T = +25 °C) 40,000 h Max. Ambient Light 3,000 Lux Barcode Printing Contrast > 20 %…
THÔNG TIN SẢN PHẨM

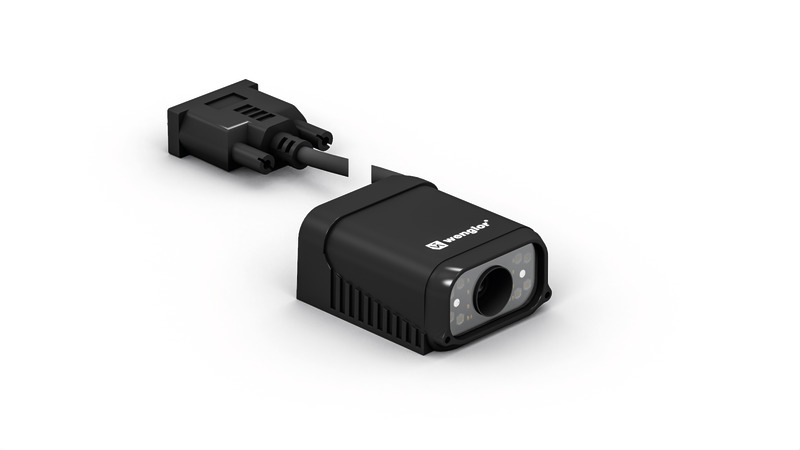

FIS-0004-0102-Wenglor
| Optical Data | |
|---|---|
| Barcode Density | Low density |
| Read Range | 51 … 152 mm |
| Resolution | 640 × 480 Pixel |
| Light Source | Red Light |
| Wavelength | 617 nm |
| Service Life (T = +25 °C) | 40,000 h |
| Max. Ambient Light | 3,000 Lux |
| Barcode Printing Contrast | > 20 % |
| Electrical Data | |
|---|---|
| Supply Voltage | 5 V DC |
| Power Consumption | 1,970 mW |
| Scan Rate | 10 scans/s |
| On-/Off-Delay (RS-232) | 2.55 s |
| Temperature Range | 0 … 40 °C |
| Switching Output | TTL |
| Number of Switching Outputs | 3 |
| Switching Output/Switching Current | 10 mA |
