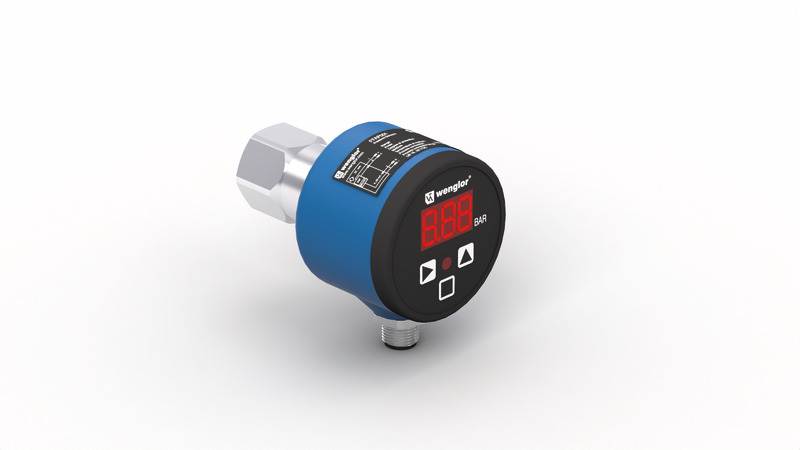

FFAP178 Pressure Sensor


FFAP178 -Wenglor Sensor-specific data Measuring Range 0 … 25 bar Measurement Type relative Maximum overload pressure 50 bar Bursting pressure 100 bar Adjustable Range 4 … 100 % Medium Liquids, gases Switching Hysteresis 2 % Measuring error < ± 0.5 % Temperature Drift…

FFAP178 Pressure Sensor

    Liên hệ: 0393.665.382

    THÔNG TIN SẢN PHẨM

    FFAP178 -Wenglor

    Sensor-specific data
    Measuring Range 0 … 25 bar
    Measurement Type relative
    Maximum overload pressure 50 bar
    Bursting pressure 100 bar
    Adjustable Range 4 … 100 %
    Medium Liquids, gases
    Switching Hysteresis 2 %
    Measuring error < ± 0.5 %
    Temperature Drift 0.025 %/K
    Environmental conditions
    Temperature of medium -25 … 80 °C
    Ambient temperature -25 … 80 °C
    EMC DIN EN 61326-2-3
    Shock resistance per DIN IEC 68-2-27 30 g / 11 ms
    Vibration resistance per DIN IEC 60068-2-6 20 g (10…2000 Hz)
    Electrical Data
    Supply Voltage 16 … 32 V DC
    Current Consumption (Ub = 24 V) < 60 mA
    Number of Switching Outputs 1
    Response Time 30 ms
    Relay Output/Switching Current (24 VDC) < 1 A
    Analog Output 0…10 V
    Signal source Pressure
    Resolution 10 bit
