    THÔNG TIN SẢN PHẨM

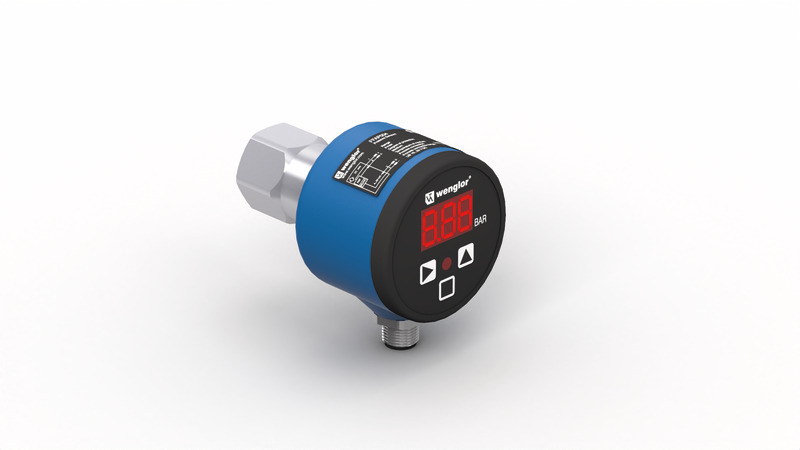

    FFAP126-Wenglor

    Sensor-specific data
    Measuring Range 0 … 1 bar
    Measurement Type relative
    Maximum overload pressure 5 bar
    Bursting pressure 6 bar
    Adjustable Range 4 … 100 %
    Medium Liquids, gases
    Switching Hysteresis 2 %
    Measuring error < ± 0.5 %
    Temperature Drift 0.025 %/K
    Environmental conditions
    Temperature of medium -25 … 80 °C
    Ambient temperature -25 … 80 °C
    EMC DIN EN 61326-2-3
    Shock resistance per DIN IEC 68-2-27 30 g / 11 ms
    Vibration resistance per DIN IEC 60068-2-6 20 g (10…2000 Hz)
    Electrical Data
    Supply Voltage 16 … 32 V DC
    Current Consumption (Ub = 24 V) < 60 mA
    Number of Switching Outputs 1
    Response Time 30 ms
    Relay Output/Switching Current (24 VDC) < 1 A
    Analog Output 4…20 mA
    Signal source Pressure
    Resolution 10 bit
    Current Output Load Resistance < 500 Ohm
