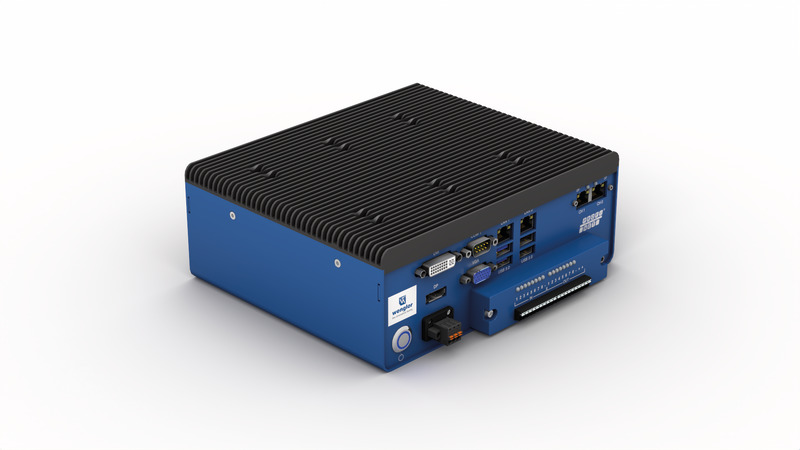

BB1C102-Wenglor
| Electrical Data | |
|---|---|
| Supply Voltage | 18 … 36 V DC |
| Current Consumption (Ub = 24 V) | < 2.2 A |
| Temperature Range | 0 … 40 °C |
| Switching Output Voltage Drop | < 2.5 V |
| PNP Switching Output/Switching Current | 100 mA |
| Electrical Isolation | yes |
| Short Circuit Protection | yes |
| Reverse Polarity Protection | yes |
| Number of Switching Outputs | 8 |
| Number of Digital Inputs | 8 |
| Number of RJ45 Industrial Ethernet ports | 2 |
| Number of USB 2.0 interfaces | 2 |
| Number of USB 3.0 interfaces | 2 |
| Number of Gigabit Ethernet RJ45 | 2 |
| Number of DVI ports | 1 |
| Number of display port interfaces | 1 |
| Number of VGA ports | 1 |
| Protection Class | III |
| Mechanical Data | |
|---|---|
| Housing Material | Metal |
| Degree of Protection | IP50 |
| Wall mounting | yes |
| General Data | |
|---|---|
| Software | uniVision Profile Extended |
| Processor | Intel® Core i7 |
| Clock Frequency | 2.3 GHz |
| RAM | 8 GB |
| Hard disk | 250 GB SSD |
